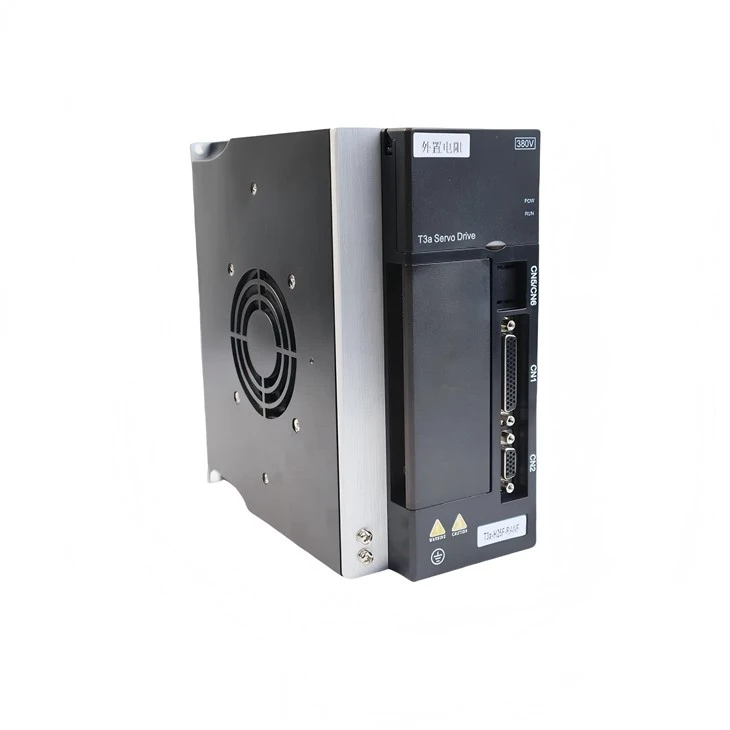

High Precision AC Servo Motor Drive (T3A / T3L Series)

Industrial Grade Digital Servo Drive for CNC, Automation & High-Speed Motion Control Systems

High Precision AC Servo Motor Drive – Industrial Motion Control Engineering Solutions

Product Definition (Engineering View)

The High Precision AC Servo Motor Drive (T3A / T3L Series) is a fully digital motion control device designed to regulate torque, speed, and position of AC servo motors with high accuracy. It integrates vector control algorithms and real-time feedback processing to ensure stable performance under high dynamic load conditions.

Working Principle

The servo drive receives command signals from PLC, CNC controller, or motion controller, then compares them with feedback signals from the encoder. The error is processed by a high-speed digital controller, which adjusts output voltage and frequency to precisely control motor behavior.

✔ Closed-loop feedback control system
✔ Real-time error correction algorithm
✔ Vector control for torque optimization
✔ High-speed PWM output regulation

Key Technical Features

✔ High precision positioning accuracy
✔ Ultra-fast response time
✔ Low vibration & noise control
✔ Adaptive gain tuning system

✔ Multi-mode control: position / speed / torque
✔ Compatible with incremental & absolute encoders
✔ Anti-interference industrial design
✔ Built-in braking resistor support

✔ Overload protection system
✔ Overvoltage / undervoltage protection
✔ Overtemperature monitoring
✔ Fault auto-diagnosis system

Technical Specifications

Input Voltage	220V / 380V AC ±15%
Control Mode	Position / Speed / Torque / Hybrid
Command Input	Pulse / Analog ±10V / RS485
Encoder Type	Incremental ABZ / Absolute Encoder Support
Response Frequency	High-speed dynamic response (<1ms class)
Protection Functions	Overload / Overcurrent / Overvoltage / Encoder Fault

Driver size one(model T3a-L20)

Figure 1 Size diagram of T3a-L20 servo drive (unit: mm)

Driver size two(models T3a-L30)

Figure 2 Dimension diagram of T3a-L30 servo drive (unit: mm)

Driver size three (model T3a-L40/T3a-H25)

T3a-L40/T3a-H25 installation dimension drawing (unit: mm)

Driver size four (models T3a-L50/L75, T3a-H50/H75)

Figure 4 Size diagram of T3a-L50/L75 and T3a-H50/H75 servo drives (unit: mm)

Industrial Applications

The T3A / T3L servo drive is widely used in precision motion systems where repeatability and speed control are critical:

✔ CNC machining centers
✔ Laser cutting systems
✔ Packaging automation lines
✔ Textile machinery control
✔ Printing & labeling machines
✔ Robotics and pick-and-place systems
✔ Semiconductor equipment

T3A vs T3L Series Engineering Comparison

T3A Series	Rugged industrial design, higher protection level, stable under harsh environments
T3L Series	Compact structure, optimized heat dissipation, suitable for space-limited installations

Technical FAQ

What motors are compatible with this servo drive?
It supports PMSM AC servo motors with incremental or absolute encoders.

Can it be integrated with PLC systems?
Yes, it supports pulse input, analog control, and RS485 communication for PLC/CNC integration.

Does it support regenerative braking?
Yes, external braking resistor and energy feedback options are supported.

What industries is it most suitable for?
CNC machinery, automation production lines, robotics, and high-speed precision equipment.
