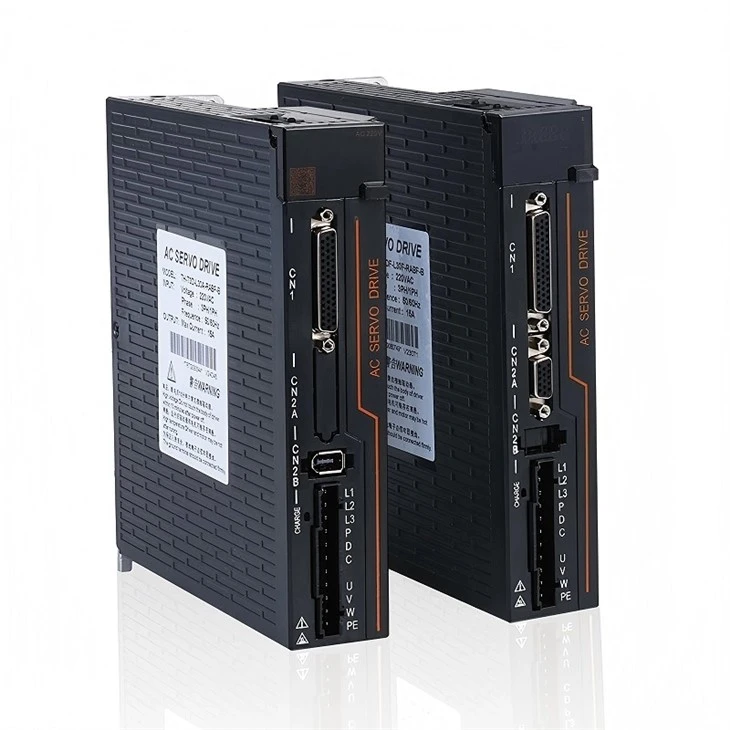

Industrial Automation Servo Drive Solution

The T3DF / C30G series is a high-performance single-board AC servo drive system designed for industrial automation, delivering precise motion control, strong overload capacity, and advanced vector control algorithms for demanding CNC, packaging, textile, and robotics applications.

Vector Control System

High Overload Capacity

Compact Single Board Design

Core Control Architecture (T3DF Platform)

ARM High-Speed Controller

High-performance ARM main control chip ensures fast response and stable servo loop execution.

IPM Power Module

Industrial-grade IPM module provides strong overload capacity and thermal stability.

Vector Servo Algorithm

Full digital vector control for torque, speed, and position synchronization.

Technical Parameters (T3DF / C30G Series)

Control Modes

Position Control / Speed Control / Torque Control integrated

Command Input

Pulse / CW-CCW / Analog ±10V control signals

Motor Compatibility

Permanent magnet synchronous servo motors (PMSM compatible)

Encoder Feedback

Incremental encoder feedback system (high precision positioning)

Protection System

Overcurrent / Overvoltage / Overload / Overheat / Phase loss protection

Dynamic Performance

Excellent low-speed torque stability and fast acceleration response

Driver size one (model T3DF-L30 installation dimension diagram)

Figure 1 T3DF-L30 servo drive dimensions (unit: mm)

Driver size two (model T3DF-H10/H15/H25)

Figure 2 T3DF-H10/H15/H25 servo drive dimensions (unit: mm)

C30G External Dimensions Of Servo Driver (mm)

Figure 3 C30G-L20/L30 installation dimensions (unit: mm)

T3DF-L30 Wiring Diagram

T3DF-H10/H15/25 Wiring diagram

C30G-L20/L30 Wiring diagram

Advanced Servo Parameter System (Engineering View)

The T3DF series uses advanced parameter tuning architecture including position loop, velocity loop, feed-forward gain, and resonance suppression filters for precision motion optimization.

P2-00 Position Loop Gain

Range: 0 ~ 1023 | Controls position response speed

P2-04 Velocity Loop Gain

Range: 0 ~ 20000 | Improves speed stability and smoothness

P2-23 Notch Filter

50–1000Hz resonance suppression for mechanical vibration reduction

P2-34 Overspeed Protection

1–5000 rpm safety threshold protection

Industrial Applications

CNC Machinery

Packaging Equipment

Textile Machinery
