AC Servo Driver for Laser Cutting Machine

High-precision motion control solution designed to improve cutting accuracy, stability, and efficiency in modern laser cutting systems.

Role of AC Servo Driver in Laser Cutting Machines

The AC servo driver is the core control unit that regulates motor movement in laser cutting machines. It converts command signals into precise motion, ensuring accurate positioning of the cutting head across X, Y, and Z axes. This enables smooth trajectory control, consistent speed, and high-quality cutting performance even in complex geometries.

High Precision Positioning

Achieves micron-level accuracy through real-time feedback and closed-loop control, ensuring clean edges and reduced material waste.

Fast Dynamic Response

Enables rapid acceleration and deceleration, improving cutting speed without compromising precision in high-speed operations.

Stable Operation

Minimizes vibration and eliminates step loss, ensuring smooth motion and consistent cutting quality over long production cycles.

Multi-Axis Synchronization

Provides precise coordination between axes, critical for complex contours and intricate cutting paths.

What Customers Care Most

1. Accuracy & Repeatability:

Consistent cutting precision ensures product quality and reduces rework.

2. System Stability:

Stable performance prevents downtime and maintains continuous production.

3. Compatibility:

Seamless integration with mainstream CNC and laser control systems.

4. Ease of Use:

Auto-tuning and simple parameter setup reduce commissioning time.

5. Reliability:

Built-in protections ensure safe operation under demanding conditions.

T3DF Series Servo Drive External Dimensions (mm)

Driver size one (model T3DF-L30 installation dimension diagram)

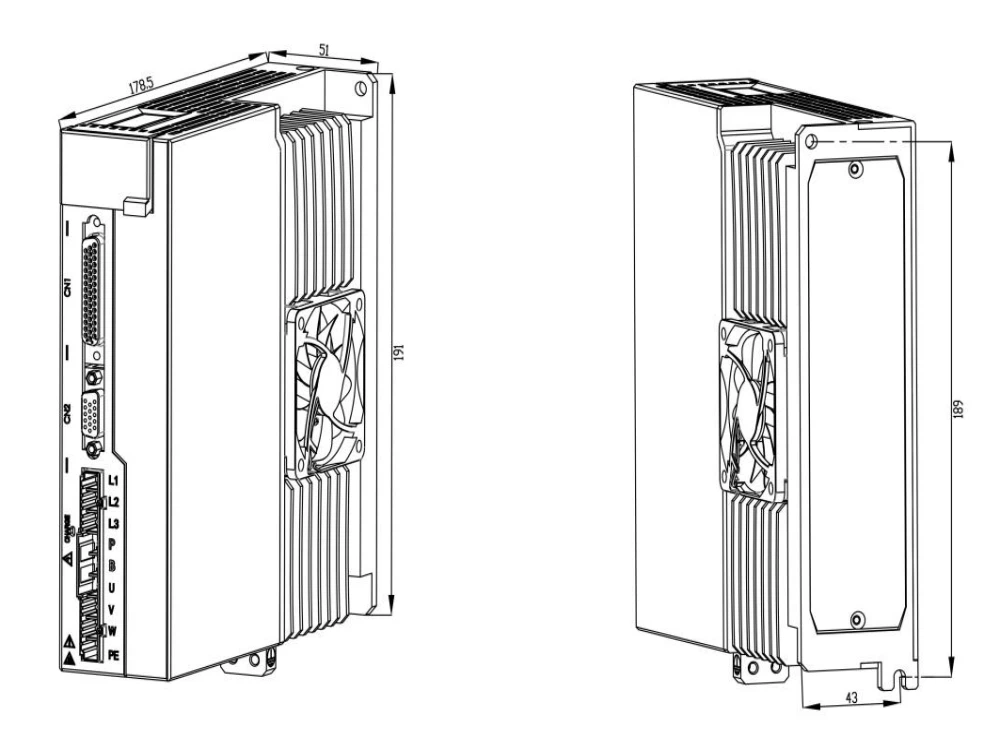

Figure 1 T3DF-L30 servo drive dimensions (unit: mm)

Driver size two (model T3DF-H10/H15/H25)

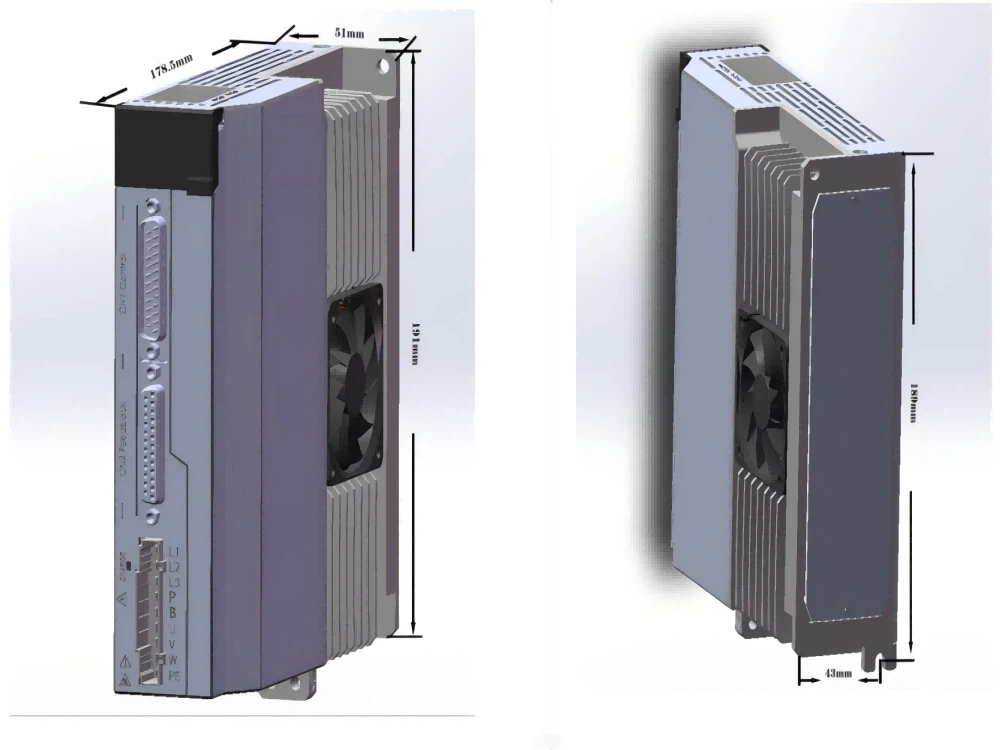

Figure 2 T3DF-H10/H15/H25 servo drive dimensions (unit: mm)

C30G External Dimensions Of Servo Driver (mm)

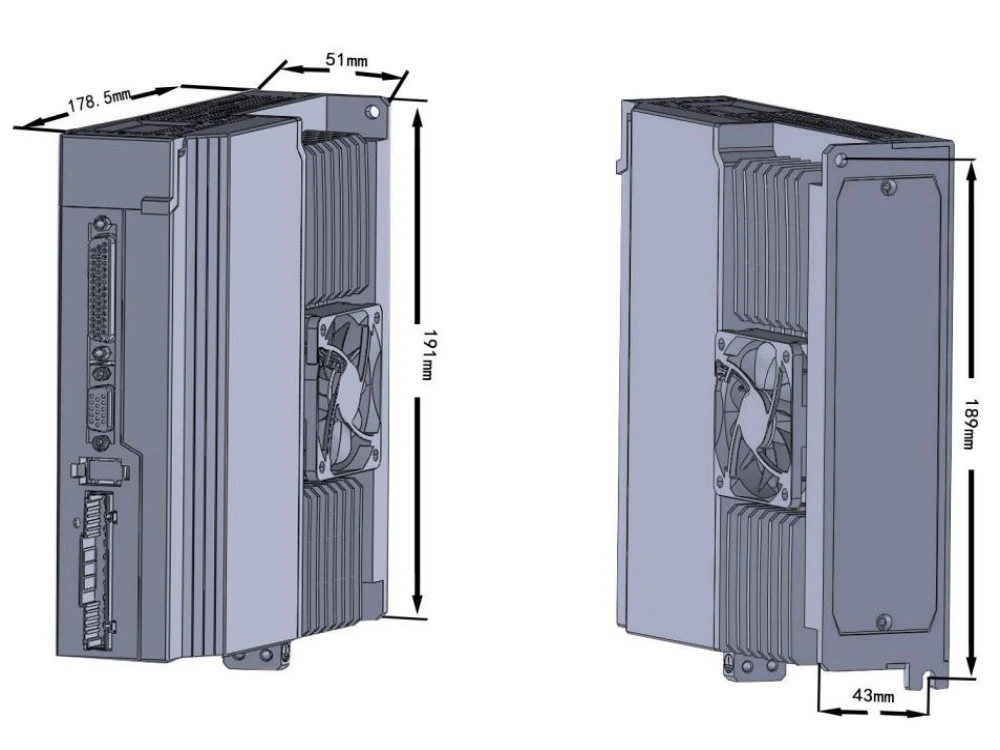

Figure 3 C30G-L20/L30 installation dimensions (unit: mm)

T3df Servo Drive Wiring Diagram

T3DF-L30 Wiring Diagram

T3DF-H10/H15/25 Wiring diagram

C30G-L20/L30 Wiring diagram

Key Features

High-speed response with precise torque control
Advanced auto-tuning for optimal performance
Overload, overvoltage, and overheating protection
Real-time feedback for closed-loop accuracy
Long service life with minimal maintenance

Applications

Widely used in fiber laser cutting machines, CO₂ laser systems, sheet metal processing, precision engraving, and automated manufacturing lines. Suitable for industries such as metal fabrication, automotive parts, electronics, and industrial equipment production.
