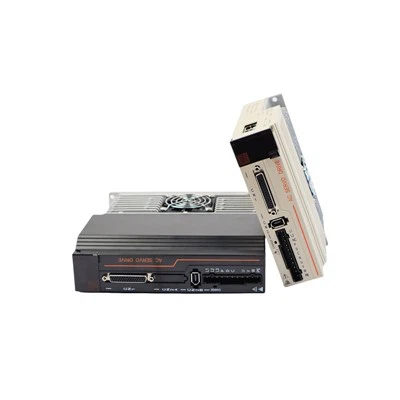

100W 220V 0.32Nm AC Servo Motor And Driver For CNC Machine
High-precision servo solution designed for small CNC systems, delivering stable torque, fast response, and reliable positioning performance.it is engineered for precision motion control in compact CNC machines. With a rated torque of 0.32Nm and 220V input, it ensures smooth operation, accurate positioning, and consistent output under continuous workloads.
T3a Series Servo Drive External Dimensions(mm)

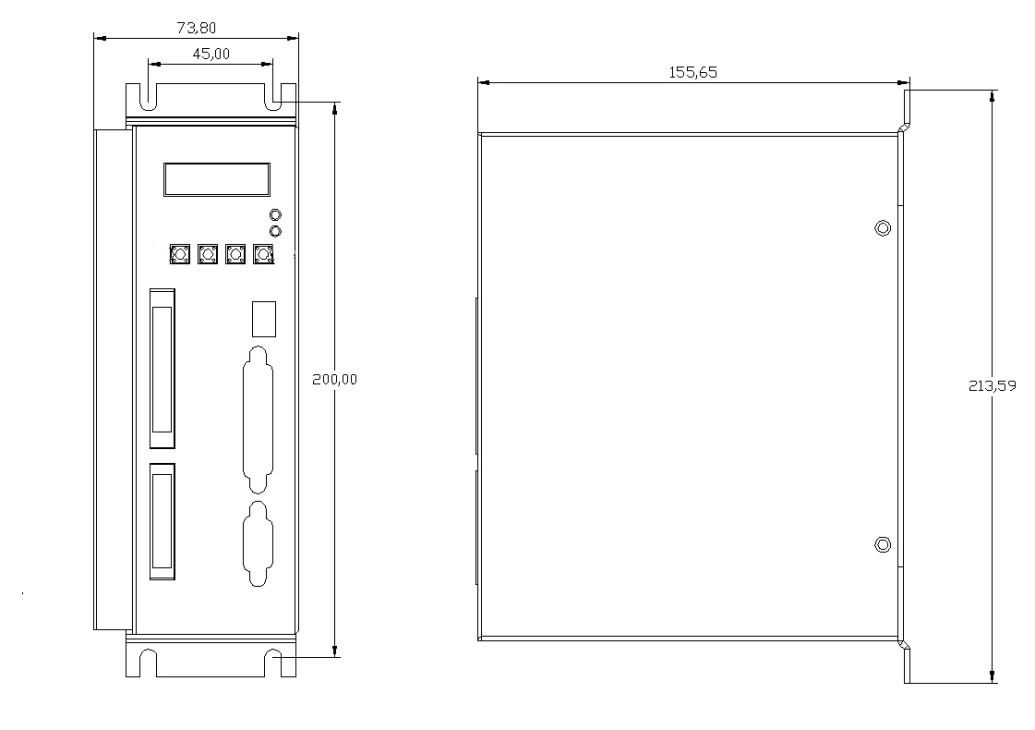

Driver size one(model T3a-L20)
Figure 1 Size diagram of T3a-L20 servo drive (unit: mm)

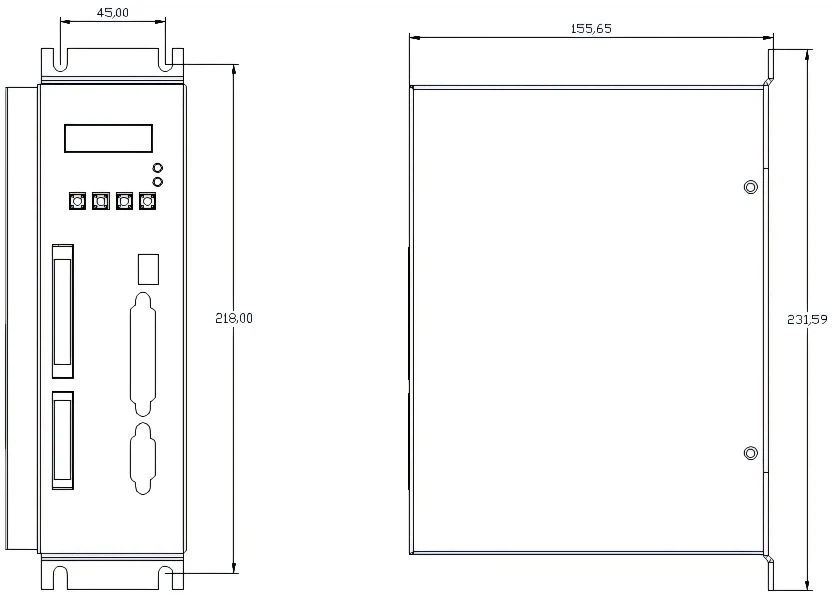

Driver size two(models T3a-L30)
Figure 2 Dimension diagram of T3a-L30 servo drive (unit: mm)
T3L Series Servo Drive External Dimensions(mm)
Driver size three (model T3a-L40/T3a-H25)
T3a-L40/T3a-H25 installation dimension drawing (unit: mm)

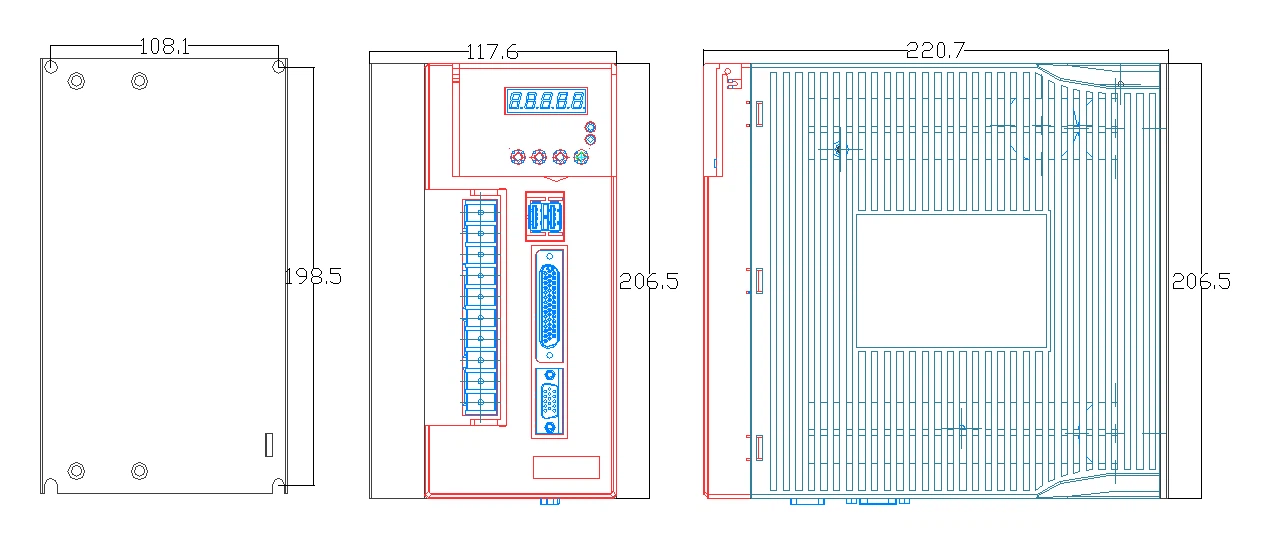

Driver size four (models T3a-L50/L75, T3a-H50/H75)
Figure 4 Size diagram of T3a-L50/L75 and T3a-H50/H75 servo drives (unit: mm)

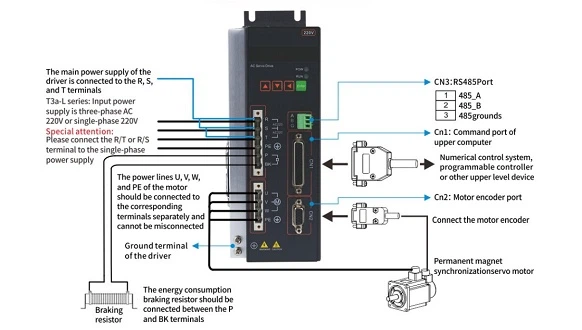

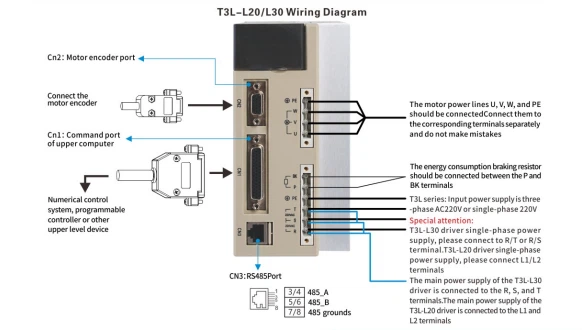

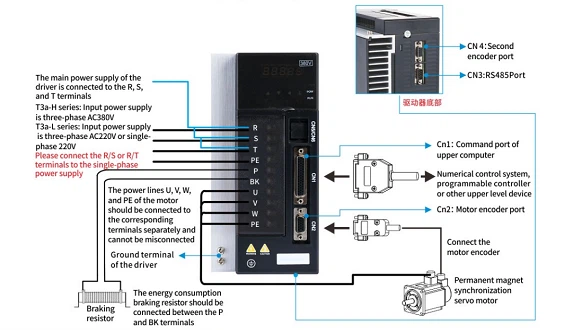

T3L Servo Drive Wiring Diagram
What Problems Can These Parameters Solve?
100W Power Output
Ideal for small CNC machines, engraving systems, and automation units. It provides sufficient power for precision tasks without overconsumption, reducing energy costs and heat generation.
0.32Nm Stable Torque
Ensures consistent force during cutting and positioning. Prevents vibration, step loss, and uneven machining, which is critical for high-precision parts and smooth surface finishing.
220V Industrial Voltage
Compatible with standard industrial power systems, eliminating the need for voltage converters. Improves stability and ensures reliable long-term operation in factory environments.
Servo Control Accuracy
Provides closed-loop feedback for precise positioning. Compared to stepper motors, it eliminates missed steps and improves repeatability in CNC machining processes.
Typical Applications
- CNC engraving machines
- Small CNC milling equipment
- Automated production lines
- Precision positioning systems
- Labeling and packaging machinery
Key Features
✔ High response speed for dynamic motion control
✔ Compact design for space-saving installation
✔ Low vibration and noise during operation
✔ High positioning accuracy and repeatability
✔ Stable torque output across speed range
✔ Long service life with minimal maintenance
Looking for a Reliable CNC Servo Solution?
Contact us today to get technical specifications, pricing, and customized solutions for your CNC application.
